Enterprise-Grade UHF RFID Reader
Enterprise-Grade UHF RFID Reader

GAO Tek’s 4-Port UHF RFID Reader

ID: 236016tek
Category:

USD


Overview

This high-performance 4-port UHF RFID reader is driven by powerful M6e UHF RFID reader module. The small form factor reader is designed for both indoor and outdoor applications and is compatible with both corporate IT infrastructures and sheltered outdoor environments. The reader is Power over Ethernet (PoE) capable and has optional Wi-Fi network connectivity. It offers a maximum read distance of up to 30 ft and is capable of reading 400 tags per second in typical read zone environment. The reader has an IP52 protection rating and has a water and dust resistant design for industrial, outdoor and rugged service requirements. Moreover, it boasts a common programming interface for enterprise RFID solution development.

Key Features

  • Small form factor, rugged service operating capabilities
  • High transmit power
  • PoE capable
  • High performance even in harsh environments
  • Max EPC ID length up to 496 bits
  • Complies with EPC global Gen 2 (ISO 186000-6C) with DRM

Technical Specifications

Tag/ Transponder Protocol
RFID Protocol EPCglobal Gen2 (ISO 18000-6C) with DRM
ISO 18000-6B (optional)
IP-X (EM 412x) (optional)
UHF RFID Antenna Interface
Interface Four RP-TNC connectors
RF Power Output Separate read and write levels, adjustable from 5 dBm to 31.5 dBm* (1.4W) with +/-0.5 dBm accuracy above +15 dBm
Frequency 902 MHz to 928 MHz (FCC; NA, SA)
865.6 MHz to 867.6 MHz (ETSI; EU)
865 MHz to 867 MHz (MCIT; India)
Data/Control/Wireless Interfaces
Connectors RJ45 (10/100 Base-T Ethernet)
USB Type B (console port)
USB Type A (accessory port)
HD15 (GPIO interface)
5.54 mm sealed connector (DC power)
Reverse polarity SMA jack (optional Wi-Fi antenna)
Wireless Internal 802.11 b/g (optional)
WEP 40-bit and 104-bit keys; WPA & WPA2 keys or EAP-TLS
USB type A interface permits future support for external wireless technologies.
Indicators, Switches, and GPIOs 1 two-color LED status indicator; Reset switch; Isolated GPIOs; 4 Inputs & 4 Outputs plus +5 VDC and grounded references
Regulatory & Safety
Regulatory FCC 47 CFR Ch.1 Part 15
Industry Canada RSS-21 0
ETSI EN 302 208 V1.2.1
Other RoHS compliant per EU directive 2002/95/EC, UL Listed (Pending)
Performance
Max Tag Read Rate Over 400 tags/second
Max Tag Read Distance Over 30 feet (9 m) with 6 dBi antenna (36 dBm EIRP)
Max EPC ID Length Up to 496 bits
Power
Power over Ethernet Power over Ethernet 802.3af in both modes A and B (Supports 100m cable).
External DC Power 10 V to 30 V DC supply voltage
Maximum DC power: 15 W
Architecture
Operating System Linux kernel version 2.6
Environment
Operating Temperature -20 °C to 50 °C
Storage Temperature -40 °C to 85 °C
Dust and Water Immunity IP52
Humidity 5% to 95%, non-condensing
Physical
Dimensions 19 cm x 17.8 cm x 3.4 cm (7.5 in. x 7.0 in. x 1.3 in.)
Weight 2 lbs (0.09 kg)
OS Features
Networking Cisco-certified DHCP & DNS-based configuration and firmware management, TCP/IP networking stack
Security SSL/SSH-based security
Web-Based Control Configuration and Monitoring from a web browser; HTTP/HTTPS

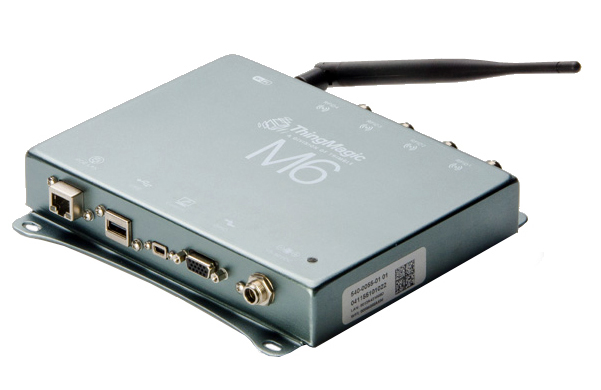

236016W WiFi version
