GAO Tek Rugged Circular Polarized Antenna

The rugged 902 MHz to 928 MHz antenna has an all metal enclosure protecting its components.




The rugged 902 MHz to 928 MHz antenna has an all metal enclosure protecting its components making it extremely resistant to damage and making it ideal for use on forklifts or rail cars. It is also able to operate over a wide temperature range so it is suitable for outdoor use. The antenna has a relatively small footprint at 7.6″x 7.6″ x .95″ and provides 6 dBi of gain. A plastic front panel is available for custom branding or other text or graphic elements.

Key Features

  • Extremely low VSWR
  • Wide band
  • Weather resistant radome
  • Wide range of connector and cable options
  • Left hand and right hand CP versions


  • Direct forklift Mount
  • Rail Cars
  • Warehouse
  • Distribution Centers
  • Transit terminals
  • Conveyor Belts

Technical Specifications

Frequency Range 902 – 928 MHz
Gain 6 dBi
Maximum VSWR 1.5:1

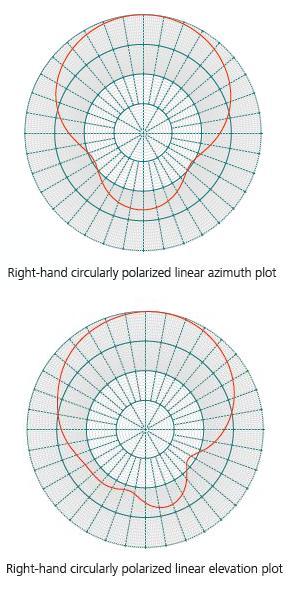

3 dB Beamwidth – Azimuth 80°
Front to Back Ratio 10 dB
Polarization Circular Right-hand
Maximum Input Power 4 Watts
Input Impedence 50 Ohms
Axial Ratio 3 dB
Weight (Kg) 2.6 lbs (1.2)
Mechanical Size 7.59″ x 7.59″ x .95″
Antenna Connection Right Angle Type N Female
Radome Aluminum w/ Minimal Polycarbonate
Mount Style Chassis mount
Temperature Operational -30 °C to 70 °C
Lightning Protection DC Grounded

Product Brochure

Download the brochure for this product.

Download Brochure
