Description
Overview
With a compact design and robust construction, this circular RFID antenna is resistant to typical environmental influences; the antenna is perfectly suited for applications in agriculture and industrial automation. It is also specially designed to be used in double sided arrangements with a single reader for applications that require large reading volumes. The antenna has a very wide beam width to maximize zone coverage.
Technical Specifications
| Model number | 304022 | ||||
| Electrical | |||||
| Frequency Range | 430 to 437 MHz | ||||
| Gain | 9 dBi (min) | ||||
| VSWR | 1.4:1 (max) 1.2:1 (typ.) | ||||
| Azimuth 3 dB Beam width | 68° (typ.) | ||||
| Elevation 3 dB Beam width | 70° (typ.) | ||||
| Polarization | LHCP | ||||
| Side lobes Level at ±90° and Front to Back | -10.5 dB (max) | ||||
| Axial Ratio at boresight | 432 to 434 MHz at 2 dB (max) 430 to 432 MHz at 4 dB (max) 434 to 437 MHz at 4 dB (max) |
||||
| Input Impedance | 50 (ohm) | ||||
| Input Power | 6 W (max) | ||||
| Lightning Protection | DC Grounded | ||||
| Mechanical | |||||
| Dimensions (L x W x D) | 371 x 371 x 40 mm | ||||
| Weight | 2.0 kg (max) | ||||
| Connector | N – type | ||||
| Radome | Plastic | ||||
| Base Plate | Aluminum with chemical conversion coating | ||||
| Outline drawing | See below | ||||
| Mounting kit | MT-120018 | ||||
| Environmental | |||||
| Test | Standard | Duration | Temperature | Notes | |
| Temperature | IEC 68-2-1/2 | 72 h | -55 °C to 71 °C | ||
| Temp. Cycling | IEC 68-2-14 | 1 h | -45 °C to 70 °C | 3 Cycles | |
| Thermal shock non-oper. | -30 °C to 70 °C | Ramp 30 °C/min | |||
| Humidity | ETSI EN300-2-4 T4.1E | 144 h | 95% | ||
| Water tightness | IEC 529 | IP67 | |||
| Dust resistance | |||||
| Solar radiation | ASTM G53 | 1000 h | |||
| Ozone resistance | ETSI 300 | ||||
| Flammability | UL 4 | Class HB | |||
| Quasi random vibration | 20 g rms for 4 hours | ||||
| Vehicle vibration | 1g rms, 10-500 Hz, in 3 axis | 6 hours total, 2 h in each axis. Accelerated wear – an additional 50 h in worst case axis | |||
| Operating | |||||
| Mechanical shock | 10g, 11 msec, | ||||
| Operating | half sine pulse | ||||

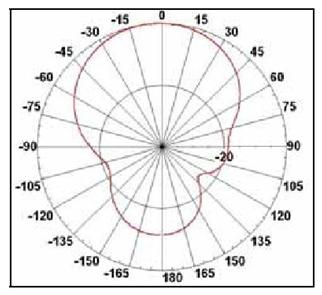

Azimuth Radiation Pattern Midband Freq. 0.437 GHz

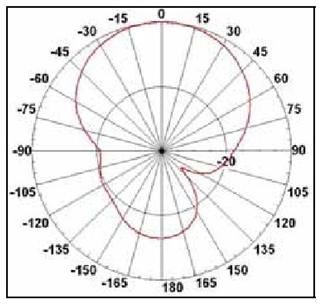

Elevation Radiation Pattern Midband Freq. 0.437 GHz

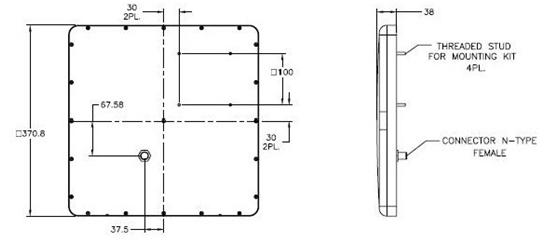

Dimensions
